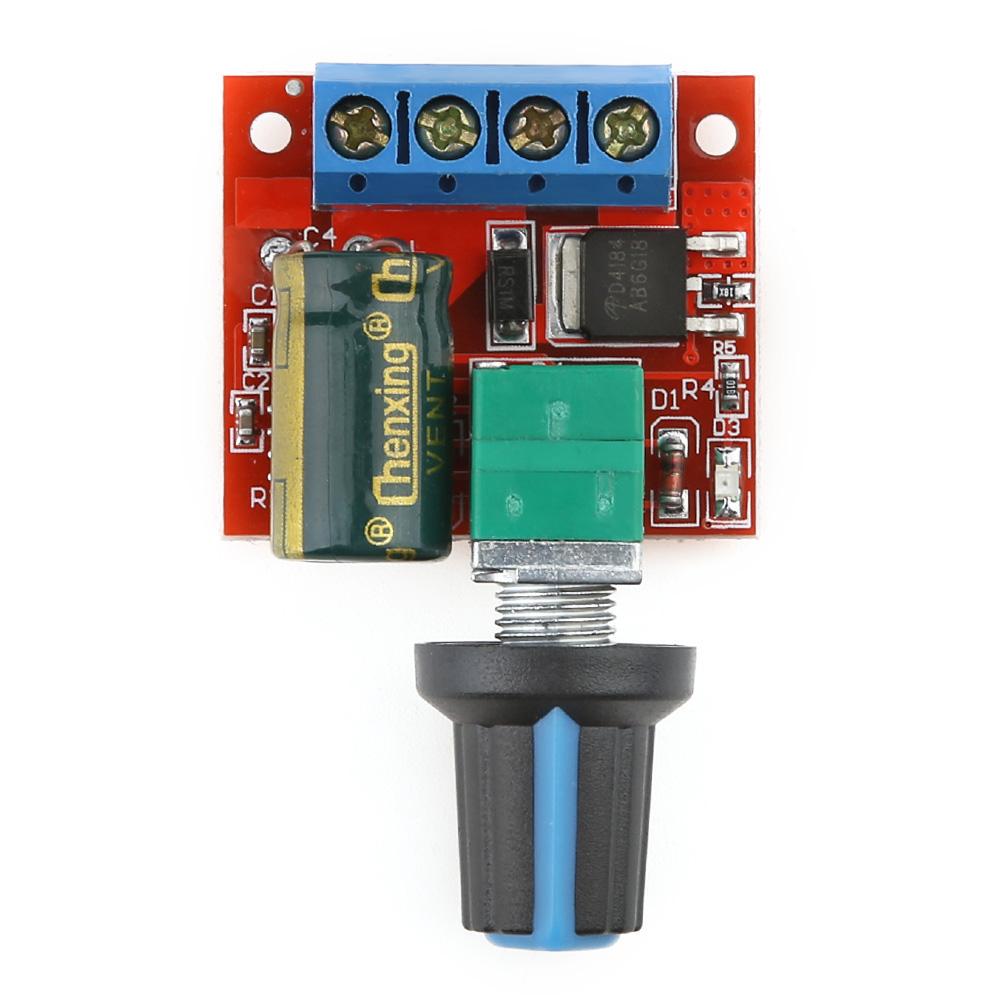

PWM DC Motor Speed Controller Module

Features:

Mini wide voltage DC pump governor, suitable for liquid filling machine liquid flow controller.

Specifications:

1. Operating voltage: DC5V-35V

2. Output current: 0-5A

3. Output power: 90W (max)

4. PWM duty cycle: 1% -100%

5. PWM frequency: 10khz

6. Size: 30mm x 24mm x 15mm (Without Handle)

Precautions:

1. DC motor governor input is DC, can not directly be connected to the AC (for example home 220V AC), otherwise, it will burn!

2. DC power supply positive and negative terminals do not reverse, otherwise, the governor may be damaged.

3. The motor can be positive or negative when the direction of operation and expectations do not match, you can adjust the line order to change the direction.

4. Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.

Package Include:

• 1X 5A Mini DC Motor PWM Speed Controller Module

• 1XNut

• 1XDimmer Cap
